| サイズ | 呼称 | 外径 | 内径 | t | kg/m |
|---|---|---|---|---|---|
| 1分 | 6A | φ10.5 | φ6.5 | 2 | 0.4 |
| 2分 | 8A | φ13.8 | φ9.2 | 2.3 | 0.7 |
| 3分 | 10A | φ17.3 | φ12.7 | 2.3 | 0.9 |
| 4分 | 15A | φ21.7 | φ16.1 | 2.8 | 1.3 |
| 6分 | 20A | φ27.2 | φ21.6 | 2.8 | 1.7 |
| 1.0吋 | 25A | φ34.0 | φ27.6 | 3.2 | 2.4 |
| 1.2吋 | 32A | φ42.7 | φ35.7 | 3.5 | 3.4 |
| 1.5吋 | 40A | φ48.6 | φ41.6 | 3.5 | 3.9 |
| 2.0吋 | 50A | φ60.5 | φ52.9 | 3.8 | 5.3 |
| 2.5吋 | 65A | φ76.3 | φ67.9 | 4.2 | 7.5 |
| 3.0吋 | 80A | φ89.1 | φ80.7 | 4.2 | 8.8 |
| 3.5吋 | 90A | φ101.6 | φ93.2 | 4.2 | 10.1 |
| 4.0吋 | 100A | φ114.3 | φ105.3 | 4.5 | 12.2 |
| 5.0吋 | 125A | φ139.8 | φ130.8 | 4.5 | 15.0 |
| 6.0吋 | 150A | φ165.2 | φ155.2 | 5 | 19.8 |
| 7.0吋 | 175A | φ190.7 | φ180.1 | 5.3 | 24.2 |
| 8.0吋 | 200A | φ216.3 | φ204.7 | 5.8 | 30.1 |
| 10.0吋 | 250A | φ267.4 | φ254.2 | 6.6 | 42.4 |
| 12.0吋 | 300A | φ318.5 | φ304.7 | 6.9 | 53.0 |
| 外径 | 内径 | 厚さ | kg/m |
|---|---|---|---|
| φ21.7 | φ17.9 | 1.9 | 0.928 |
| φ17.1 | 2.3 | 1.1 | |
| φ16.1 | 2.8 | 1.31 | |
| φ27.2 | φ23.4 | 1.9 | 1.19 |
| φ22.6 | 2.3 | 1.41 | |
| φ21.6 | 2.8 | 1.68 | |
| φ34.0 | φ29.4 | 2.3 | 1.8 |
| φ27.6 | 3.2 | 2.43 | |
| φ25.0 | 4.5 | 3.27 | |
| φ42.7 | φ38.1 | 2.3 | 2.29 |
| φ36.3 | 3.2 | 3.12 | |
| φ35.7 | 3.5 | 3.38 | |
| φ48.6 | φ44.0 | 2.3 | 2.63 |
| φ42.2 | 3.2 | 3.58 | |
| φ41.6 | 3.5 | 3.89 | |
| φ60.5 | φ55.9 | 2.3 | 3.3 |
| φ54.1 | 3.2 | 4.52 | |
| φ52.9 | 3.8 | 5.31 | |
| φ50.7 | 4.9 | 6.72 | |
| φ49.5 | 5.5 | 7.46 | |
| φ76.3 | φ70.7 | 2.8 | 5.08 |
| φ69.9 | 3.2 | 5.77 | |
| φ67.9 | 4.2 | 7.47 | |
| φ65.9 | 5.2 | 9.12 | |
| φ62.3 | 7 | 12 | |
| φ89.1 | φ83.5 | 2.8 | 5.96 |
| φ82.7 | 3.2 | 6.78 | |
| φ80.7 | 4.2 | 8.79 | |
| φ78.1 | 5.5 | 11.3 | |
| φ101.6 | φ95.2 | 3.2 | 7.76 |
| φ93.2 | 4.2 | 10.1 | |
| φ90.2 | 5.7 | 13.5 | |
| φ114.3 | φ107.3 | 3.5 | 9.56 |
| φ105.3 | 4.5 | 12.2 | |
| φ102.3 | 6 | 16 | |
| φ139.8 | φ132.8 | 3.5 | 11.8 |
| φ131.8 | 4 | 13.4 | |
| φ130.8 | 4.5 | 15 | |
| φ127.8 | 6 | 19.8 | |
| φ126.6 | 6.6 | 21.7 | |
| φ165.2 | φ157.8 | 3.7 | 14.7 |
| φ156.2 | 4.5 | 17.8 | |
| φ155.2 | 5 | 19.8 | |
| φ153.2 | 6 | 23.6 | |
| φ151.0 | 7.1 | 27.7 | |
| φ190.7 | φ181.7 | 4.5 | 20.7 |
| φ180.1 | 5.3 | 24.2 | |
| φ176.7 | 7 | 31.7 | |
| φ216.3 | φ207.3 | 4.5 | 23.5 |
| φ204.7 | 5.8 | 30.1 | |
| φ199.9 | 8.2 | 42.1 | |
| φ190.9 | 12.7 | 63.8 | |
| φ241.8 | φ229.4 | 6.2 | 36 |
| φ267.4 | φ255.4 | 6 | 38.7 |
| φ254.2 | 6.6 | 42.4 | |
| φ248.8 | 9.3 | 59.2 | |
| φ242.0 | 12.7 | 79.8 | |
| φ318.5 | φ306.5 | 6 | 46.2 |
| φ304.7 | 6.9 | 53 | |
| φ302.7 | 7.9 | 60.5 | |
| φ300.5 | 9 | 68.7 | |
| φ297.9 | 10.3 | 78.3 | |
| φ355.6 | φ342.8 | 6.4 | 55.1 |
| φ339.8 | 7.9 | 67.7 | |
| φ336.6 | 9.5 | 81.1 | |
| φ333.4 | 11.1 | 94.3 | |
| φ330.2 | 12.7 | 107 | |
| φ406.4 | φ393.6 | 6.4 | 63.1 |
| φ390.6 | 7.9 | 77.6 | |
| φ387.4 | 9.5 | 93 | |
| φ381.0 | 12.7 | 123 | |
| φ457.2 | φ444.4 | 6.4 | 71.1 |
| φ441.4 | 7.9 | 87.5 | |
| φ438.2 | 9.5 | 105 | |
| φ431.8 | 12.7 | 139 | |
| φ508.0 | φ495.2 | 6.4 | 79.2 |
| φ492.2 | 7.9 | 97.4 | |
| φ489.0 | 9.5 | 117 | |
| φ482.6 | 12.7 | 155 | |
| φ558.8 | φ558.8 | 9.5 | 129 |
| φ609.6 | φ596.8 | 6.4 | 95.2 |
| φ593.8 | 7.9 | 117 | |
| φ590.6 | 9.5 | 141 |
| 外径基準 | 外径 | 内径 | 肉厚 | 重量 | |
|---|---|---|---|---|---|
| 5.0 | 3.0 | 1.0t | 0.1㎏/m | ||
| 6.0 | 4.0 | 1.0t | 0.1㎏/m | ||
| 6.3 | 4.3 | 1.0t | 0.1㎏/m | ||
| 7.0 | 5.0 | 1.0t | 0.1㎏/m | ||
| 7.0 | 4.6 | 1.2t | 0.2㎏/m | ||
| 8.0 | 6.0 | 1.0t | 0.2㎏/m | ||
| 8.0 | 5.6 | 1.2t | 0.2㎏/m | ||
| 8.0 | 4.8 | 1.6t | 0.3㎏/m | ||
| 9.0 | 7.0 | 1.0t | 0.2㎏/m | ||
| 9.0 | 6.6 | 1.2t | 0.2㎏/m | ||
| 9.0 | 5.8 | 1.6t | 0.3㎏/m | ||
| 9.5 | 7.5 | 1.0t | 0.2㎏/m | ||
| 9.5 | 7.1 | 1.2t | 0.2㎏/m | ||
| 9.5 | 6.3 | 1.6t | 0.3㎏/m | ||
| 10.0 | 7.6 | 1.2t | 0.4㎏/m | ||
| 10.0 | 6.8 | 1.6t | 0.4㎏/m | ||
| 6A | SCH40 | 10.5 | 7.1 | 1.7t | 0.4㎏/m |
| 6A | SGP | 10.5 | 6.5 | 2.0t | 0.4㎏/m |
| 6A | SCH60 | 10.5 | 6.1 | 2.2t | 0.5㎏/m |
| 6A | SCH80 | 10.5 | 5.7 | 2.4t | 0.5㎏/m |
| 11.0 | 9.0 | 1.0t | 0.2㎏/m | ||
| 11.0 | 8.6 | 1.2t | 0.3㎏/m | ||
| 11.0 | 6.1 | 1.6t | 0.4㎏/m | ||
| 12.0 | 10.0 | 1.0t | 0.3㎏/m | ||
| 12.0 | 9.6 | 1.2t | 0.3㎏/m | ||
| 12.0 | 8.8 | 1.6t | 0.4㎏/m | ||
| 12.0 | 8.0 | 2.0t | 0.5㎏/m | ||
| ﾎﾟﾘﾊﾟｲ | 3/8 | 12.7 | 10.7 | 1.0t | 0.3㎏/m |
| 12.7 | 10.3 | 1.2t | 0.3㎏/m | ||
| 12.7 | 9.5 | 1.6t | 0.4㎏/m | ||
| 8A | 13.8 | 10.6 | 1.6t | 0.5㎏/m | |
| 8A | 13.8 | 9.8 | 2.0t | 0.6㎏/m | |
| 8A | SCH40 | 13.8 | 9.4 | 2.2t | 0.6㎏/m |
| 8A | SGP | 13.8 | 9.2 | 2.3t | 0.7㎏/m |
| 8A | 13.8 | 9.2 | 2.3t | 0.7㎏/m | |
| 8A | SCH60 | 13.8 | 9.0 | 2.4t | 0.7㎏/m |
| 8A | SCH80 | 13.8 | 7.8 | 3.0t | 0.8㎏/m |
| 14.0 | 12.0 | 1.0t | 0.3㎏/m | ||
| 14.0 | 11.6 | 1.2t | 0.4㎏/m | ||
| 15.0 | 9.0 | 3.0t | 0.9㎏/m | ||
| ﾎﾟﾘﾊﾟｲ | 1/2 | 15.9 | 13.9 | 1.0t | 0.4㎏/m |
| 15.9 | 13.5 | 1.2t | 0.4㎏/m | ||
| 15.9 | 12.7 | 1.6t | 0.6㎏/m | ||
| 15.9 | 11.9 | 2.0t | 0.7㎏/m | ||
| 15.9 | 11.3 | 2.3t | 0.8㎏/m | ||
| 16.0 | 12.0 | 2.0t | 0.7㎏/m | ||
| 10A | 17.3 | 14.1 | 1.6t | 0.6㎏/m | |
| 10A | 17.3 | 13.3 | 2.0t | 0.8㎏/m | |
| 10A | SGP | 17.3 | 12.7 | 2.3t | 0.9㎏/m |
| 10A | SCH40 | 17.3 | 12.7 | 2.3t | 0.9㎏/m |
| 10A | SCH60 | 17.3 | 11.7 | 2.8t | 1.0㎏/m |
| 10A | SCH80 | 17.3 | 10.9 | 3.2t | 1.1㎏/m |
| 10A | 17.3 | 9.9 | 3.7t | 1.2㎏/m | |
| 18.0 | 10.0 | 4.0t | 1.4㎏/m | ||
| 19.0 | 15.0 | 2.0t | 0.8㎏/m | ||
| 19.0 | 13.0 | 3.0t | 1.2㎏/m | ||
| 19.0 | 11.6 | 3.7t | 1.4㎏/m | ||
| 19.1 | 17.1 | 1.0t | 0.4㎏/m | ||
| 19.1 | 16.7 | 1.2t | 0.5㎏/m | ||
| 19.1 | 15.9 | 1.6t | 0.7㎏/m | ||
| 19.1 | 15.1 | 2.0t | 0.8㎏/m | ||
| 19.1 | 14.5 | 2.3t | 1.0㎏/m | ||
| 電線管厚鋼 | SCH16 | 21.0 | 16.4 | 2.3t | 1.1㎏/m |
| 21.7 | 17.9 | 1.9t | 0.9㎏/m | ||
| 21.7 | 17.1 | 2.3t | 1.1㎏/m | ||
| 15A | SGP | 21.7 | 16.1 | 2.8t | 1.3㎏/m |
| 15A | SCH40 | 21.7 | 16.1 | 2.8t | 1.3㎏/m |
| 15A | SCH60 | 21.7 | 15.3 | 3.2t | 1.5㎏/m |
| 15A | SCH80 | 21.7 | 14.3 | 3.7t | 1.6㎏/m |
| 15A | 21.7 | 12.3 | 4.7t | 2.0㎏/m | |
| 22.2 | 20.2 | 1.0t | 0.5㎏/m | ||
| 22.2 | 19.8 | 1.2t | 0.6㎏/m | ||
| 22.2 | 19.0 | 1.6t | 0.8㎏/m | ||
| 22.2 | 18.2 | 2.0t | 1.0㎏/m | ||
| 22.2 | 17.6 | 2.3t | 1.1㎏/m | ||
| 23.0 | 13.0 | 5.0t | 2.2㎏/m | ||
| 25.4 | 23.4 | 1.0t | 0.6㎏/m | ||
| 25.4 | 23.0 | 1.2t | 0.7㎏/m | ||
| 25.4 | 22.2 | 1.6t | 0.9㎏/m | ||
| 25.4 | 21.4 | 2.0t | 1.2㎏/m | ||
| 25.4 | 20.8 | 2.3t | 1.3㎏/m | ||
| 25.4 | 19.0 | 3.2t | 1.8㎏/m | ||
| 電線管厚鋼 | SCH22 | 26.5 | 21.9 | 2.3t | 1.4㎏/m |
| 20A | 27.2 | 23.4 | 1.9t | 1.2㎏/m | |
| 20A | 27.2 | 22.6 | 2.3t | 1.4㎏/m | |
| 20A | SGP | 27.2 | 21.6 | 2.8t | 1.7㎏/m |
| 20A | SCH40 | 27.2 | 21.4 | 2.9t | 1.7㎏/m |
| 20A | SCH60 | 27.2 | 20.4 | 3.4t | 2.0㎏/m |
| 20A | SCH80 | 27.2 | 19.4 | 3.9t | 2.2㎏/m |
| 20A | 27.2 | 16.2 | 5.5t | 2.9㎏/m | |
| 20A | 27.2 | 15.2 | 6.0t | 3.1㎏/m | |
| 28.6 | 26.2 | 1.2t | 0.8㎏/m | ||
| 28.6 | 25.4 | 1.6t | 1.1㎏/m | ||
| 28.6 | 24.6 | 2.0t | 1.3㎏/m | ||
| 28.6 | 24.0 | 2.3t | 1.5㎏/m | ||
| 28.6 | 22.8 | 2.9t | 1.8㎏/m | ||
| 30.0 | 24.2 | 2.9t | 1.9㎏/m | ||
| 30.0 | 24.0 | 3.0t | 2.0㎏/m | ||
| 30.0 | 17.0 | 6.5t | 3.8㎏/m | ||
| 31.8 | 29.4 | 1.2t | 0.9㎏/m | ||
| 31.8 | 28.6 | 1.6t | 1.2㎏/m | ||
| 31.8 | 27.8 | 2.0t | 1.5㎏/m | ||
| 31.8 | 27.2 | 2.3t | 1.7㎏/m | ||
| 31.8 | 25.4 | 3.2t | 2.3㎏/m | ||
| 31.8 | 24.8 | 3.5t | 2.4㎏/m | ||
| 31.8 | 21.8 | 5.0t | 3.3㎏/m | ||
| 31.8 | 19.8 | 6.0t | 3.8㎏/m | ||
| 31.8 | 17.8 | 7.0t | 4.3㎏/m | ||
| 電線管厚鋼 | SCH28 | 33.3 | 28.3 | 2.5t | 1.9㎏/m |
| 33.3 | 27.7 | 2.8t | 2.1㎏/m | ||
| 25A | 34.0 | 31.6 | 1.2t | 1.0㎏/m | |
| 25A | 34.0 | 30.8 | 1.6t | 1.3㎏/m | |
| 25A | 34.0 | 30.0 | 2.0t | 1.6㎏/m | |
| 25A | 34.0 | 29.4 | 2.3t | 1.8㎏/m | |
| 25A | SGP | 34.0 | 27.6 | 3.2t | 2.4㎏/m |
| 25A | SCH40 | 34.0 | 27.2 | 3.4t | 2.6㎏/m |
| 25A | SCH60 | 34.0 | 26.2 | 3.9t | 2.9㎏/m |
| 25A | SCH80 | 34.0 | 25.0 | 4.5t | 3.3㎏/m |
| 25A | 34.0 | 24.0 | 5.0t | 3.6㎏/m | |
| 25A | 34.0 | 21.2 | 6.4t | 4.4㎏/m | |
| 25A | 34.0 | 20.0 | 7.0t | 4.7㎏/m | |
| 25A | 34.0 | 14.0 | 10.0t | 5.9㎏/m | |
| 35.0 | 32.6 | 1.2t | 1.0㎏/m | ||
| 35.0 | 26.4 | 4.3t | 3.3㎏/m | ||
| 36.4 | 31.8 | 2.3t | 1.9㎏/m | ||
| 38.1 | 35.7 | 1.2t | 1.1㎏/m | ||
| 電線管薄鋼 | E38 | 38.1 | 34.9 | 1.6t | 1.4㎏/m |
| 38.1 | 34.1 | 2.0t | 1.8㎏/m | ||
| 38.1 | 33.5 | 2.3t | 2.0㎏/m | ||
| 38.1 | 31.7 | 3.2t | 2.8㎏/m | ||
| 38.1 | 31.1 | 3.5t | 3.0㎏/m | ||
| 38.1 | 28.1 | 5.0t | 4.1㎏/m | ||
| 38.1 | 26.1 | 6.0t | 4.7㎏/m | ||
| 38.1 | 24.1 | 7.0t | 5.4㎏/m | ||
| 38.1 | 22.1 | 8.0t | 5.9㎏/m | ||
| 38.1 | 18.1 | 10.0t | 6.9㎏/m | ||
| 40.0 | 32.0 | 4.0t | 3.6㎏/m | ||
| 40.0 | 30.0 | 5.0t | 4.3㎏/m | ||
| 40.0 | 28.0 | 6.0t | 5.0㎏/m | ||
| 40.0 | 26.0 | 7.0t | 5.7㎏/m | ||
| 40.0 | 24.0 | 8.0t | 6.3㎏/m | ||
| 40.0 | 20.0 | 10.0t | 7.4㎏/m | ||
| 41.0 | 36.4 | 2.3t | 2.2㎏/m | ||
| 電線管厚鋼 | SCH36 | 41.9 | 36.9 | 2.5t | 2.4㎏/m |
| 32A | 42.7 | 40.3 | 1.2t | 1.2㎏/m | |
| 32A | 42.7 | 39.5 | 1.6t | 1.6㎏/m | |
| 32A | 42.7 | 38.7 | 2.0t | 2.0㎏/m | |
| 32A | 42.7 | 38.1 | 2.3t | 2.3㎏/m | |
| 32A | 42.7 | 37.1 | 2.8t | 2.8㎏/m | |
| 32A | 42.7 | 36.3 | 3.2t | 3.1㎏/m | |
| 32A | SGP | 42.7 | 35.7 | 3.5t | 3.4㎏/m |
| 32A | SCH40 | 42.7 | 35.5 | 3.6t | 3.5㎏/m |
| 32A | SCH60 | 42.7 | 33.7 | 4.5t | 4.2㎏/m |
| 32A | SCH80 | 42.7 | 32.9 | 4.9t | 4.6㎏/m |
| 32A | 42.7 | 29.9 | 6.4t | 5.7㎏/m | |
| 32A | 42.7 | 28.7 | 7.0t | 6.2㎏/m | |
| 32A | 42.7 | 26.7 | 8.0t | 6.8㎏/m | |
| 32A | 42.7 | 22.7 | 10.0t | 8.1㎏/m | |
| 32A | 42.7 | 18.7 | 12.0ｔ | 9.9㎏/m | |
| 45.0 | 42.6 | 1.2t | 1.3㎏/m | ||
| 45.0 | 41.8 | 1.6t | 1.7㎏/m | ||
| 45.0 | 37.4 | 3.8t | 3.9㎏/m | ||
| 45.0 | 35.0 | 5.0t | 4.9㎏/m | ||
| 45.0 | 33.0 | 6.0t | 5.8㎏/m | ||
| 45.0 | 31.0 | 7.0t | 6.6㎏/m | ||
| 45.0 | 29.0 | 8.0t | 7.3㎏/m | ||
| 45.0 | 25.0 | 10.0t | 8.6㎏/m | ||
| 電線管厚鋼 | SCH42 | 47.8 | 42.8 | 2.5t | 2.8㎏/m |
| 40A | 48.6 | 45.4 | 1.6t | 1.9㎏/m | |
| 40A | 48.6 | 44.6 | 2.0t | 2.3㎏/m | |
| 40A | 48.6 | 44.0 | 2.3t | 2.6㎏/m | |
| 40A | 48.6 | 42.2 | 3.2t | 3.6㎏/m | |
| 40A | SGP | 48.6 | 41.6 | 3.5t | 3.9㎏/m |
| 40A | SCH40 | 48.6 | 41.2 | 3.7t | 4.1㎏/m |
| 40A | SCH60 | 48.6 | 39.6 | 4.5t | 4.9㎏/m |
| 40A | SCH80 | 48.6 | 38.4 | 5.1t | 5.5㎏/m |
| 40A | 48.6 | 36.6 | 6.0t | 6.3㎏/m | |
| 40A | 48.6 | 34.4 | 7.1t | 7.3㎏/m | |
| 40A | 48.6 | 32.6 | 8.0t | 8.0㎏/m | |
| 40A | 48.6 | 28.6 | 10.0t | 9.5㎏/m | |
| 40A | 48.6 | 24.6 | 12.0t | 10.8㎏/m | |
| 50.8 | 48.4 | 1.2t | 1.5㎏/m | ||
| 電線管薄鋼 | E51 | 50.8 | 47.6 | 1.6t | 1.9㎏/m |
| 50.8 | 46.2 | 2.3t | 2.8㎏/m | ||
| 50.8 | 45.6 | 2.6t | 3.4㎏/m | ||
| 50.8 | 44.4 | 3.2t | 4.1㎏/m | ||
| 50.8 | 43.8 | 3.5t | 4.1㎏/m | ||
| 50.8 | 40.8 | 5.0t | 5.6㎏/m | ||
| 50.8 | 38.8 | 6.0t | 6.6㎏/m | ||
| 50.8 | 36.8 | 7.0t | 7.6㎏/m | ||
| 50.8 | 34.8 | 8.0t | 8.4㎏/m | ||
| 50.8 | 30.8 | 10.0t | 10.1㎏/m | ||
| 50.8 | 26.8 | 12.0t | 11.5㎏/m | ||
| 50.8 | 24.8 | 13.0t | 12.1㎏/m | ||
| 50.8 | 20.8 | 15.0t | 13.2㎏/m | ||
| 54.0 | 50.0 | 2.0t | 2.6㎏/m | ||
| 54.0 | 49.4 | 2.3t | 2.9㎏/m | ||
| 54.0 | 48.8 | 2.6t | 3.3㎏/m | ||
| 54.0 | 48.2 | 2.9t | 3.7㎏/m | ||
| 54.0 | 47.6 | 3.2t | 4.0㎏/m | ||
| 54.0 | 47.0 | 3.5t | 4.4㎏/m | ||
| 54.0 | 46.0 | 4.0t | 4.9㎏/m | ||
| 54.0 | 45.0 | 4.5t | 5.5㎏/m | ||
| 54.0 | 44.0 | 5.0t | 6.0㎏/m | ||
| 54.0 | 43.0 | 5.5t | 6.6㎏/m | ||
| 54.0 | 42.0 | 6.0t | 7.1㎏/m | ||
| 54.0 | 41.0 | 6.5t | 7.6㎏/m | ||
| 54.0 | 40.0 | 7.0t | 8.1㎏/m | ||
| 54.0 | 38.0 | 8.0t | 9.1㎏/m | ||
| 54.0 | 35.0 | 9.5t | 10.4㎏/m | ||
| 54.0 | 32.0 | 11.0t | 11.7㎏/m | ||
| 54.0 | 29.0 | 12.5t | 12.8㎏/m | ||
| 55.0 | 45.0 | 5.0t | 6.2㎏/m | ||
| 55.0 | 43.0 | 6.0t | 7.3㎏/m | ||
| 55.0 | 41.0 | 7.0t | 8.3㎏/m | ||
| 55.0 | 39.0 | 8.0t | 9.3㎏/m | ||
| 55.0 | 35.0 | 10.0t | 11.1㎏/m | ||
| 55.0 | 31.0 | 12.0t | 12.7㎏/m | ||
| 55.0 | 25.0 | 15.0t | 14.8㎏/m | ||
| 57.0 | 50.0 | 3.5t | 4.6㎏/m | ||
| 57.0 | 47.0 | 5.0t | 6.4㎏/m | ||
| 57.0 | 45.2 | 5.9t | 7.4㎏/m | ||
| 57.0 | 44.4 | 6.3t | 7.9㎏/m | ||
| 57.0 | 43.0 | 7.0t | 8.6㎏/m | ||
| 57.0 | 41.0 | 8.0t | 9.7㎏/m | ||
| 57.0 | 37.0 | 10.0t | 11.6㎏/m | ||
| 57.2 | 54.0 | 1.6t | 2.2㎏/m | ||
| 電線管厚鋼 | SCH54 | 59.6 | 54.0 | 2.8t | 3.9㎏/m |
| 50A | 60.5 | 57.3 | 1.6t | 2.3㎏/m | |
| 50A | 60.5 | 56.5 | 2.0t | 2.9㎏/m | |
| 50A | 60.5 | 55.9 | 2.3t | 3.3㎏/m | |
| 50A | 60.5 | 54.9 | 2.8t | 4.0㎏/m | |
| 50A | SCH20 | 60.5 | 54.1 | 3.2t | 4.5㎏/m |
| 50A | SGP | 60.5 | 52.9 | 3.8t | 5.3㎏/m |
| 50A | SCH40 | 60.5 | 52.7 | 3.9t | 5.4㎏/m |
| 50A | 60.5 | 51.5 | 4.5t | 6.2㎏/m | |
| 50A | 60.5 | 50.7 | 4.9t | 6.7㎏/m | |
| 50A | SCH80 | 60.5 | 49.5 | 5.5t | 7.5㎏/m |
| 50A | 60.5 | 48.5 | 6.0t | 8.1㎏/m | |
| 50A | 60.5 | 46.5 | 7.0t | 9.2㎏/m | |
| 50A | 60.5 | 43.1 | 8.7t | 11.1㎏/m | |
| 50A | 60.5 | 40.5 | 10.0t | 12.5㎏/m | |
| 50A | 60.5 | 36.5 | 12.0t | 14.4㎏/m | |
| 50A | 60.5 | 30.5 | 15.0t | 16.8㎏/m | |
| 50A | 60.5 | 24.5 | 18.0t | 18.9㎏/m | |
| 63.5 | 59.5 | 2.0t | 3.0㎏/m | ||
| 電線管薄鋼 | E63 | 63.5 | 59.5 | 2.0t | 3.0㎏/m |
| 63.5 | 56.5 | 3.5t | 5.2㎏/m | ||
| 63.5 | 55.5 | 4.0t | 5.9㎏/m | ||
| 63.5 | 54.5 | 4.5t | 6.5㎏/m | ||
| 63.5 | 53.5 | 5.0t | 7.2㎏/m | ||
| 63.5 | 51.5 | 6.0t | 8.5㎏/m | ||
| 63.5 | 49.5 | 7.0t | 9.8㎏/m | ||
| 63.5 | 47.5 | 8.0t | 10.9㎏/m | ||
| 63.5 | 43.5 | 10.0t | 13.2㎏/m | ||
| 63.5 | 39.5 | 12.0t | 15.2㎏/m | ||
| 63.5 | 33.5 | 15.0t | 17.9㎏/m | ||
| 65.0 | 57.0 | 4.0t | 6.0㎏/m | ||
| 65.0 | 55.0 | 5.0t | 7.4㎏/m | ||
| 65.0 | 53.0 | 6.0t | 8.7㎏/m | ||
| 65.0 | 51.0 | 7.0t | 10.0㎏/m | ||
| 65.0 | 49.0 | 8.0t | 11.2㎏/m | ||
| 65.0 | 45.0 | 10.0t | 13.6㎏/m | ||
| 65.0 | 41.0 | 12.0t | 15.7㎏/m | ||
| 65.0 | 35.0 | 15.0t | 18.5㎏/m | ||
| 65.0 | 31.0 | 17.0t | 20.1㎏/m | ||
| 65.0 | 25.0 | 20.0t | 22.2㎏/m | ||
| 70.0 | 62.0 | 4.0t | 6.5㎏/m | ||
| 70.0 | 60.0 | 5.0t | 8.0㎏/m | ||
| 70.0 | 58.0 | 6.0t | 9.5㎏/m | ||
| 70.0 | 57.2 | 6.4t | 10.0㎏/m | ||
| 70.0 | 56.0 | 7.0t | 10.9㎏/m | ||
| 70.0 | 54.0 | 8.0t | 12.2㎏/m | ||
| 70.0 | 50.0 | 10.0t | 14.8㎏/m | ||
| 70.0 | 46.0 | 12.0t | 17.2㎏/m | ||
| 70.0 | 40.0 | 15.0t | 20.3㎏/m | ||
| 70.0 | 34.0 | 18.0t | 23.1㎏/m | ||
| 70.0 | 30.0 | 20.0t | 24.7㎏/m | ||
| STKM13A | 73.0 | 63.0 | 5.0t | 8.4㎏/m | |
| STKM13A | 73.0 | 61.0 | 6.0t | 9.9㎏/m | |
| 73.0 | 59.0 | 7.0t | 11.4㎏/m | ||
| 73.0 | 57.0 | 8.0t | 12.8㎏/m | ||
| 73.0 | 53.0 | 10.0t | 15.5㎏/m | ||
| 73.0 | 49.0 | 12.0t | 18.1㎏/m | ||
| 73.0 | 43.0 | 15.0t | 21.5㎏/m | ||
| 73.0 | 33.0 | 20.0t | 26.1㎏/m | ||
| 電線管厚鋼 | SCH70 | 75.2 | 69.6 | 2.8t | 5.0㎏/m |
| 電線管薄鋼 | E75 | 76.2 | 72.6 | 1.8t | |
| 65A | 76.3 | 73.1 | 1.6t | 2.9㎏/m | |
| 65A | 76.3 | 72.3 | 2.0t | 3.7㎏/m | |
| 65A | 76.3 | 71.7 | 2.3t | 4.2㎏/m | |
| 65A | 76.3 | 70.7 | 2.8t | 5.1㎏/m | |
| 65A | 76.3 | 69.9 | 3.2t | 5.8㎏/m | |
| 65A | 76.3 | 69.3 | 3.5t | 6.3㎏/m | |
| 65A | SGP | 76.3 | 67.9 | 4.2t | 7.5㎏/m |
| 65A | 76.3 | 67.9 | 4.2t | 7.5㎏/m | |
| 65A | SCH20 | 76.3 | 67.3 | 4.5t | 8.0㎏/m |
| 65A | SCH40 | 76.3 | 65.9 | 5.2t | 9.1㎏/m |
| 65A | 76.3 | 65.9 | 5.2t | 9.1㎏/m | |
| 65A | SCH60 | 76.3 | 64.3 | 6.0t | 10.4㎏/m |
| 65A | SCH80 | 76.3 | 62.3 | 7.0t | 12.0㎏/m |
| 65A | 76.3 | 60.3 | 8.0t | 13.5㎏/m | |
| 65A | 76.3 | 57.3 | 9.5t | 15.7㎏/m | |
| 65A | 76.3 | 56.3 | 10.0t | 16.4㎏/m | |
| 65A | 76.3 | 52.3 | 12.0t | 19.0㎏/m | |
| 65A | 76.3 | 46.3 | 15.0t | 22.7㎏/m | |
| 65A | 76.3 | 40.3 | 18.0t | 25.9㎏/m | |
| 65A | 76.3 | 36.3 | 20.0t | 27.8㎏/m | |
| 65A | 76.3 | 26.3 | 25.0t | 31.6㎏/m | |
| 80.0 | 70.0 | 5.0t | 9.2㎏/m | ||
| 80.0 | 68.0 | 6.0t | 10.9㎏/m | ||
| 80.0 | 64.0 | 8.0t | 14.2㎏/m | ||
| 80.0 | 60.0 | 10.0t | 17.3㎏/m | ||
| 80.0 | 56.0 | 12.0t | 20.1㎏/m | ||
| 80.0 | 50.0 | 15.0t | 24.0㎏/m | ||
| 80.0 | 44.0 | 18.0t | 27.5㎏/m | ||
| 80.0 | 40.0 | 20.0t | 29.6㎏/m | ||
| 82.6 | 70.6 | 6.0t | 11.3㎏/m | ||
| 82.6 | 68.6 | 7.0t | 13.1㎏/m | ||
| 82.6 | 66.6 | 8.0t | 14.7㎏/m | ||
| 82.6 | 62.6 | 10.0t | 17.9㎏/m | ||
| 82.6 | 58.6 | 12.0t | 20.9㎏/m | ||
| 82.6 | 52.6 | 15.0t | 25.0㎏/m | ||
| 82.6 | 46.6 | 18.0t | 28.7㎏/m | ||
| 82.6 | 42.6 | 20.0t | 30.9㎏/m | ||
| 82.6 | 32.6 | 25.0t | 35.5㎏/m | ||
| 85.0 | 75.0 | 5.0t | 9.9㎏/m | ||
| 85.0 | 73.0 | 6.0t | 11.7㎏/m | ||
| 85.0 | 69.0 | 8.0t | 15.2㎏/m | ||
| 85.0 | 65.0 | 10.0t | 18.5㎏/m | ||
| 85.0 | 61.0 | 12.0t | 21.6㎏/m | ||
| 85.0 | 55.0 | 15.0t | 25.9㎏/m | ||
| 85.0 | 45.0 | 20.0t | 32.1㎏/m | ||
| 85.0 | 35.0 | 25.0t | 37.0㎏/m | ||
| 電線管厚鋼 | SCH82 | 87.9 | 82.3 | 2.8t | 5.9㎏/m |
| 80A | 89.1 | 84.5 | 2.3t | 4.9㎏/m | |
| 80A | 89.1 | 83.5 | 2.8t | 6.0㎏/m | |
| 80A | 89.1 | 82.7 | 3.2t | 6.8㎏/m | |
| 80A | SGP | 89.1 | 80.7 | 4.2t | 8.8㎏/m |
| 80A | SCH20 | 89.1 | 80.1 | 4.5t | 9.4㎏/m |
| 80A | SCH40 | 89.1 | 78.1 | 5.5t | 11.3㎏/m |
| 80A | 89.1 | 78.1 | 5.5t | 11.3㎏/m | |
| 80A | SCH60 | 89.1 | 75.9 | 6.6t | 13.4㎏/m |
| 80A | SCH80 | 89.1 | 73.9 | 7.6t | 15.3㎏/m |
| 80A | 89.1 | 69.1 | 10.0t | 19.5㎏/m | |
| 80A | 89.1 | 66.9 | 11.1t | 21.4㎏/m | |
| 80A | 89.1 | 59.1 | 15.0t | 27.4㎏/m | |
| 80A | 89.1 | 53.1 | 18.0t | 31.6㎏/m | |
| 80A | 89.1 | 49.1 | 20.0t | 34.1㎏/m | |
| 80A | 89.1 | 39.1 | 25.0t | 39.5㎏/m | |
| 95.0 | 79.0 | 8.0t | 17.2㎏/m | ||
| 95.0 | 75.0 | 10.0t | 21.0㎏/m | ||
| 95.0 | 71.0 | 12.0t | 24.6㎏/m | ||
| 95.0 | 65.0 | 15.0t | 29.6㎏/m | ||
| 95.0 | 59.0 | 18.0t | 34.2㎏/m | ||
| 95.0 | 55.0 | 20.0t | 37.0㎏/m | ||
| 95.0 | 45.0 | 25.0t | 43.2㎏/m | ||
| 98.0 | 82.0 | 8.0t | 17.8㎏/m | ||
| 電線管厚鋼 | SCH92 | 100.7 | 93.7 | 3.5t | 8.4㎏/m |
| 90A | 101.6 | 97.6 | 2.0t | 4.9㎏/m | |
| 90A | 101.6 | 97.0 | 2.3t | 5.6㎏/m | |
| 90A | 101.6 | 95.2 | 3.2t | 7.8㎏/m | |
| 90A | 101.6 | 94.6 | 3.5t | 8.5㎏/m | |
| 90A | SGP | 101.6 | 93.2 | 4.2t | 10.1㎏/m |
| 90A | 101.6 | 93.2 | 4.2t | 10.1㎏/m | |
| 90A | SCH20 | 101.6 | 92.6 | 4.5t | 10.8㎏/m |
| 90A | SCH40 | 101.6 | 90.2 | 5.7t | 13.5㎏/m |
| 90A | 101.6 | 90.2 | 5.7t | 13.5㎏/m | |
| 90A | SCH60 | 101.6 | 87.6 | 7.0t | 16.3㎏/m |
| 90A | SCH80 | 101.6 | 85.4 | 8.1t | 18.7㎏/m |
| 90A | 101.6 | 85.4 | 8.1t | 18.7㎏/m | |
| 90A | 101.6 | 81.6 | 10.0t | 22.6㎏/m | |
| 90A | 101.6 | 76.2 | 12.7t | 27.8㎏/m | |
| 90A | 101.6 | 71.6 | 15.0t | 32.0㎏/m | |
| 90A | 101.6 | 65.6 | 18.0t | 37.1㎏/m | |
| 90A | 101.6 | 61.6 | 20.0t | 40.2㎏/m | |
| 90A | 101.6 | 51.6 | 25.0t | 47.2㎏/m | |
| 90A | 101.6 | 43.6 | 29.0t | 51.9㎏/m | |
| 90A | 101.6 | 41.6 | 30.0t | 53.0㎏/m | |
| 104.0 | 65.6 | 19.2t | 40.2㎏/m | ||
| 105.0 | 89.0 | 8.0t | 19.1㎏/m | ||
| 105.0 | 85.0 | 10.0t | 23.4㎏/m | ||
| 105.0 | 81.0 | 12.0t | 27.5㎏/m | ||
| 105.0 | 75.0 | 15.0t | 33.3㎏/m | ||
| 105.0 | 65.0 | 20.0t | 41.9㎏/m | ||
| 105.0 | 55.0 | 25.0t | 49.3㎏/m | ||
| 105.0 | 45.0 | 30.0t | 55.5㎏/m | ||
| 110.0 | 98.0 | 6.0t | 15.4㎏/m | ||
| 110.0 | 94.0 | 8.0t | 20.1㎏/m | ||
| 110.0 | 90.0 | 10.0t | 24.7㎏/m | ||
| 110.0 | 86.0 | 12.0t | 29.0㎏/m | ||
| 110.0 | 80.0 | 15.0t | 35.1㎏/m | ||
| 110.0 | 70.0 | 20.0t | 44.4㎏/m | ||
| 110.0 | 60.0 | 25.0t | 52.4㎏/m | ||
| 110.0 | 52.0 | 29.0t | 57.9㎏/m | ||
| 110.0 | 50.0 | 30.0t | 59.2㎏/m | ||
| 電線管厚鋼 | SCH104 | 113.4 | 106.4 | 3.5t | 9.5㎏/m |
| 100A | 114.3 | 108.7 | 2.8t | 7.7㎏/m | |
| 100A | 114.3 | 107.3 | 3.5t | 9.6㎏/m | |
| 100A | 114.3 | 106.3 | 4.0t | 10.9㎏/m | |
| 100A | SGP | 114.3 | 105.3 | 4.5t | 12.2㎏/m |
| 100A | 114.3 | 105.3 | 4.5t | 12.2㎏/m | |
| 100A | SCH20 | 114.3 | 104.5 | 4.9t | 13.2㎏/m |
| 100A | SCH40 | 114.3 | 102.3 | 6.0t | 16.0㎏/m |
| 100A | 114.3 | 102.3 | 6.0t | 16.0㎏/m | |
| 100A | SCH60 | 114.3 | 100.1 | 7.1t | 18.8㎏/m |
| 100A | SCH80 | 114.3 | 97.1 | 8.6t | 22.4㎏/m |
| 100A | 114.3 | 97.1 | 8.6t | 22.4㎏/m | |
| 100A | 114.3 | 94.3 | 10.0t | 25.7㎏/m | |
| 100A | 114.3 | 92.1 | 11.1t | 28.3㎏/m | |
| 100A | 114.3 | 90.3 | 12.0t | 30.3㎏/m | |
| 100A | 114.3 | 87.3 | 13.5t | 33.6㎏/m | |
| 100A | 114.3 | 84.3 | 15.0t | 36.7㎏/m | |
| 100A | 114.3 | 80.3 | 17.0t | 40.8㎏/m | |
| 100A | 114.3 | 74.3 | 20.0t | 46.5㎏/m | |
| 100A | 114.3 | 64.3 | 25.0t | 55.1㎏/m | |
| 100A | 114.3 | 56.3 | 29.0t | 61.0㎏/m | |
| 100A | 114.3 | 54.3 | 30.0t | 62.4㎏/m | |
| 120.0 | 110.0 | 5.0t | 14.2㎏/m | ||
| 120.0 | 108.0 | 6.0t | 16.9㎏/m | ||
| 120.0 | 106.0 | 7.0t | 19.5㎏/m | ||
| 120.0 | 104.0 | 8.0t | 22.1㎏/m | ||
| 120.0 | 100.0 | 10.0t | 27.1㎏/m | ||
| 120.0 | 96.0 | 12.0t | 32.0㎏/m | ||
| 120.0 | 90.0 | 15.0t | 38.8㎏/m | ||
| 120.0 | 80.0 | 20.0t | 49.3㎏/m | ||
| 120.0 | 70.0 | 25.0t | 58.6㎏/m | ||
| 120.0 | 62.0 | 29.0t | 65.1㎏/m | ||
| 120.0 | 60.0 | 30.0t | 66.6㎏/m | ||
| 127.0 | 120.0 | 3.5t | 10.7㎏/m | ||
| 127.0 | 118.0 | 4.5t | 13.6㎏/m | ||
| 127.0 | 117.0 | 5.0t | 15.0㎏/m | ||
| 127.0 | 115.0 | 6.0t | 17.9㎏/m | ||
| 127.0 | 111.0 | 8.0t | 23.5㎏/m | ||
| 127.0 | 107.0 | 10.0t | 28.9㎏/m | ||
| 127.0 | 103.0 | 12.0t | 34.0㎏/m | ||
| 127.0 | 97.0 | 15.0t | 41.4㎏/m | ||
| 127.0 | 94.0 | 16.5t | 45.0㎏/m | ||
| 127.0 | 91.0 | 18.0t | 48.4㎏/m | ||
| 127.0 | 87.0 | 20.0t | 52.8㎏/m | ||
| 127.0 | 77.0 | 25.0t | 62.9㎏/m | ||
| 127.0 | 67.0 | 30.0t | 71.8㎏/m | ||
| 130.0 | 120.0 | 5.0t | 15.4㎏/m | ||
| 130.0 | 118.0 | 6.0t | 18.3㎏/m | ||
| 130.0 | 114.0 | 8.0t | 24.1㎏/m | ||
| 130.0 | 110.0 | 10.0t | 29.6㎏/m | ||
| 130.0 | 106.0 | 12.0t | 34.9㎏/m | ||
| 130.0 | 100.0 | 15.0t | 42.5㎏/m | ||
| 130.0 | 94.0 | 18.0t | 49.7㎏/m | ||
| 130.0 | 90.0 | 20.0t | 54.3㎏/m | ||
| 130.0 | 80.0 | 25.0t | 64.7㎏/m | ||
| 130.0 | 70.0 | 30.0t | 74.0㎏/m | ||
| 135.0 | 115.0 | 10.0t | 30.8㎏/m | ||
| 135.0 | 105.0 | 15.0t | 44.4㎏/m | ||
| 135.0 | 95.0 | 20.0t | 56.7㎏/m | ||
| 135.0 | 85.0 | 25.0t | 67.8㎏/m | ||
| 125A | 139.8 | 134.2 | 2.8t | 9.5㎏/m | |
| 125A | 139.8 | 132.8 | 3.5t | 11.8㎏/m | |
| 125A | 139.8 | 131.8 | 4.0t | 13.4㎏/m | |
| 125A | SGP | 139.8 | 130.8 | 4.5t | 15.0㎏/m |
| 125A | SCH20 | 139.8 | 129.6 | 5.1t | 16.9㎏/m |
| 125A | SCH40 | 139.8 | 126.6 | 6.6t | 21.7㎏/m |
| 125A | 139.8 | 123.8 | 8.0t | 26.0㎏/m | |
| 125A | SCH60 | 139.8 | 123.6 | 8.1t | 26.3㎏/m |
| 125A | SCH80 | 139.8 | 120.8 | 9.5t | 30.5㎏/m |
| 125A | 139.8 | 117.8 | 11.0t | 34.9㎏/m | |
| 125A | SCH120 | 139.8 | 114.4 | 12.7t | 39.8㎏/m |
| 125A | SCH160 | 139.8 | 108.0 | 15.9t | 48.6㎏/m |
| 125A | 139.8 | 99.8 | 20.0t | 59.1㎏/m | |
| 125A | 139.8 | 95.8 | 22.0t | 63.9㎏/m | |
| 125A | 139.8 | 89.8 | 25.0t | 70.8㎏/m | |
| 125A | 139.8 | 79.8 | 30.0t | 81.2㎏/m | |
| 125A | 139.8 | 69.8 | 35.0t | 90.5㎏/m | |
| 146.0 | 130.0 | 8.0t | 27.2㎏/m | ||
| 146.0 | 126.0 | 10.0t | 33.5㎏/m | ||
| 146.0 | 122.0 | 12.0t | 39.7㎏/m | ||
| 146.0 | 116.0 | 15.0t | 48.5㎏/m | ||
| 146.0 | 106.0 | 20.0t | 62.1㎏/m | ||
| 152.4 | 142.4 | 5.0t | 18.2㎏/m | ||
| 152.4 | 140.4 | 6.0t | 21.7㎏/m | ||
| 152.4 | 136.4 | 8.0t | 28.5㎏/m | ||
| 152.4 | 132.4 | 10.0t | 35.1㎏/m | ||
| 152.4 | 128.4 | 12.0t | 41.5㎏/m | ||
| 152.4 | 122.4 | 15.0t | 50.8㎏/m | ||
| 152.4 | 116.4 | 18.0t | 59.7㎏/m | ||
| 152.4 | 112.4 | 20.0t | 65.3㎏/m | ||
| 152.4 | 102.4 | 25.0t | 78.5㎏/m | ||
| 152.4 | 92.4 | 30.0t | 90.6㎏/m | ||
| 152.4 | 82.4 | 35.0t | 101.3㎏/m | ||
| 153.7 | 129.7 | 12.0t | 41.9㎏/m | ||
| 153.7 | 123.7 | 15.0t | 51.3㎏/m | ||
| 153.7 | 117.7 | 18.0t | 60.2㎏/m | ||
| 154.0 | 134.0 | 10.0t | 35.5㎏/m | ||
| 154.0 | 130.0 | 12.0t | 42.0㎏/m | ||
| 154.0 | 124.0 | 15.0t | 51.4㎏/m | ||
| 154.0 | 114.0 | 20.0t | 66.1㎏/m | ||
| 159.0 | 143.0 | 8.0t | 29.8㎏/m | ||
| 159.0 | 139.0 | 10.0t | 36.7㎏/m | ||
| 159.0 | 135.0 | 12.0t | 43.5㎏/m | ||
| 159.0 | 129.0 | 15.0t | 53.3㎏/m | ||
| 159.0 | 119.0 | 20.0t | 68.6㎏/m | ||
| 159.0 | 109.0 | 25.0t | 82.6㎏/m | ||
| 159.0 | 99.0 | 30.0t | 95.4㎏/m | ||
| 150A | 165.2 | 157.8 | 3.7t | 14.7㎏/m | |
| 150A | 165.2 | 156.2 | 4.5t | 17.8㎏/m | |
| 150A | SGP | 165.2 | 155.2 | 5.0t | 19.8㎏/m |
| 150A | SCH20 | 165.2 | 154.2 | 5.5t | 21.7㎏/m |
| 150A | 165.2 | 153.2 | 6.0t | 23.6㎏/m | |
| 150A | SCH40 | 165.2 | 151.0 | 7.1t | 27.7㎏/m |
| 150A | 165.2 | 149.2 | 8.0t | 31.0㎏/m | |
| 150A | SCH60 | 165.2 | 146.6 | 9.3t | 35.8㎏/m |
| 150A | 165.2 | 145.2 | 10.0t | 38.3㎏/m | |
| 150A | SCH80 | 165.2 | 143.2 | 11.0t | 41.8㎏/m |
| 150A | 165.2 | 141.2 | 12.0t | 45.3㎏/m | |
| 150A | SCH120 | 165.2 | 136.6 | 14.3t | 53.2㎏/m |
| 150A | 165.2 | 135.2 | 15.0t | 55.6㎏/m | |
| 150A | SCH160 | 165.2 | 128.8 | 18.2t | 66.0㎏/m |
| 150A | 165.2 | 125.2 | 20.0t | 71.6㎏/m | |
| 150A | 165.2 | 115.2 | 25.0t | 86.4㎏/m | |
| 150A | 165.2 | 105.2 | 30.0t | 100.0㎏/m | |
| 150A | 165.2 | 95.2 | 35.0t | 112.4㎏/m | |
| 168.3 | 104.3 | 32.0t | 107.6㎏/m | ||
| 177.8 | 165.8 | 6.0t | 25.4㎏/m | ||
| 177.8 | 161.8 | 8.0t | 33.5㎏/m | ||
| 177.8 | 157.8 | 10.0t | 41.4㎏/m | ||
| 177.8 | 153.8 | 12.0t | 49.1㎏/m | ||
| 177.8 | 147.8 | 15.0t | 60.2㎏/m | ||
| 177.8 | 141.8 | 18.0t | 70.9㎏/m | ||
| 177.8 | 137.8 | 20.0t | 77.8㎏/m | ||
| 177.8 | 127.8 | 25.0t | 94.2㎏/m | ||
| 177.8 | 109.8 | 34.0t | 120.6㎏/m | ||
| 177.8 | 107.8 | 35.0t | 123.3㎏/m | ||
| 185.0 | 155.0 | 15.0t | 62.9㎏/m | ||
| 185.0 | 145.0 | 20.0t | 81.4㎏/m | ||
| 175A | 190.7 | 181.7 | 4.5t | 20.7㎏/m | |
| 175A | SGP | 190.7 | 180.1 | 5.3t | 24.2㎏/m |
| 175A | 190.7 | 178.7 | 6.0t | 27.3㎏/m | |
| 175A | 190.7 | 176.7 | 7.0t | 31.7㎏/m | |
| 175A | 190.7 | 174.7 | 8.0t | 36.0㎏/m | |
| 175A | 190.7 | 172.7 | 9.0t | 40.3㎏/m | |
| 175A | 190.7 | 170.7 | 10.0t | 44.6㎏/m | |
| 175A | 190.7 | 166.7 | 12.0t | 52.9㎏/m | |
| 175A | 190.7 | 160.7 | 15.0t | 65.0㎏/m | |
| 175A | 190.7 | 154.7 | 18.0t | 76.7㎏/m | |
| 175A | 190.7 | 150.7 | 20.0t | 84.2㎏/m | |
| 175A | 190.7 | 140.7 | 25.0t | 102.2㎏/m | |
| 175A | 190.7 | 130.7 | 30.0t | 118.9㎏/m | |
| 175A | 190.7 | 120.7 | 35.0t | 134.4㎏/m | |
| 175A | 190.7 | 110.7 | 40.0t | 148.7㎏/m | |
| 203.0 | 187.0 | 8.0t | 38.5㎏/m | ||
| 203.0 | 183.0 | 10.0t | 47.6㎏/m | ||
| 203.0 | 179.0 | 12.0t | 56.5㎏/m | ||
| 203.0 | 173.0 | 15.0t | 69.5㎏/m | ||
| 203.0 | 163.0 | 20.0t | 90.3㎏/m | ||
| 203.0 | 153.0 | 25.0t | 109.7㎏/m | ||
| 203.0 | 143.0 | 30.0t | 128.0㎏/m | ||
| 203.0 | 133.0 | 35.0t | 145.0㎏/m | ||
| 205.0 | 189.0 | 8.0t | 38.9㎏/m | ||
| 205.0 | 181.0 | 12.0t | 57.1㎏/m | ||
| 205.0 | 175.0 | 15.0t | 70.3㎏/m | ||
| 205.0 | 169.0 | 18.0t | 83.0㎏/m | ||
| 205.0 | 165.0 | 20.0t | 91.2㎏/m | ||
| 205.0 | 155.0 | 25.0t | 111.0㎏/m | ||
| 205.0 | 145.0 | 30.0t | 129.5㎏/m | ||
| 200A | 216.3 | 207.3 | 4.5t | 23.5㎏/m | |
| 200A | 216.3 | 204.7 | 5.8t | 30.1㎏/m | |
| 200A | SGP | 216.3 | 204.7 | 5.8t | 30.1㎏/m |
| 200A | 216.3 | 203.5 | 6.4t | 33.1㎏/m | |
| 200A | SCH20 | 216.3 | 203.5 | 6.4t | 33.1㎏/m |
| 200A | 216.3 | 202.3 | 7.0t | 36.1㎏/m | |
| 200A | SCH30. | 216.3 | 202.3 | 7.0t | 36.1㎏/m |
| 200A | 216.3 | 199.9 | 8.2t | 42.1㎏/m | |
| 200A | SCH40 | 216.3 | 199.9 | 8.2t | 42.1㎏/m |
| 200A | SCH60 | 216.3 | 195.7 | 10.3t | 52.3㎏/m |
| 200A | SCH80 | 216.3 | 190.9 | 12.7t | 63.8㎏/m |
| 200A | 216.3 | 187.7 | 14.3t | 71.2㎏/m | |
| 200A | SCH100 | 216.3 | 186.1 | 15.1t | 74.9㎏/m |
| 200A | SCH120 | 216.3 | 179.9 | 18.2t | 88.9㎏/m |
| 200A | 216.3 | 176.3 | 20.0t | 96.8㎏/m | |
| 200A | SCH140 | 216.3 | 175.1 | 20.6t | 99.4㎏/m |
| 200A | SCH160 | 216.3 | 170.3 | 23.0t | 109.6㎏/m |
| 200A | 216.3 | 166.3 | 25.0t | 117.9㎏/m | |
| 200A | 216.3 | 156.3 | 30.0t | 137.8㎏/m | |
| 200A | 216.3 | 146.3 | 35.0t | 156.5㎏/m | |
| 200A | 216.3 | 136.3 | 40.0t | 173.9㎏/m | |
| 200A | 216.3 | 126.3 | 45.0t | 190.1㎏/m | |
| 200A | 216.3 | 122.3 | 47.0t | 196.2㎏/m | |
| 219.0 | 203.0 | 8.0t | 41.6㎏/m | ||
| 219.0 | 199.0 | 10.0t | 51.5㎏/m | ||
| 219.0 | 195.0 | 12.0t | 61.3㎏/m | ||
| 219.0 | 189.0 | 15.0t | 75.5㎏/m | ||
| 219.0 | 179.0 | 20.0t | 98.2㎏/m | ||
| 219.0 | 169.0 | 25.0t | 119.6㎏/m | ||
| 219.0 | 159.0 | 30.0t | 139.8㎏/m | ||
| 229.0 | 131.0 | 49.0t | 217.5㎏/m | ||
| 232.0 | 216.0 | 8.0t | 44.2㎏/m | ||
| 232.0 | 212.0 | 10.0t | 54.7㎏/m | ||
| 232.0 | 208.0 | 12.0t | 65.1㎏/m | ||
| 232.0 | 202.0 | 15.0t | 80.3㎏/m | ||
| 232.0 | 196.0 | 18.0t | 95.0㎏/m | ||
| 232.0 | 192.0 | 20.0t | 104.6㎏/m | ||
| 232.0 | 182.0 | 25.0t | 127.6㎏/m | ||
| 232.0 | 172.0 | 30.0t | 149.4㎏/m | ||
| 232.0 | 162.0 | 35.0t | 170.0㎏/m | ||
| 233.0 | 163.0 | 35.0t | 170.9㎏/m | ||
| 241.8 | 229.4 | 6.2t | 36.0㎏/m | ||
| 241.8 | 225.8 | 8.0t | 46.1㎏/m | ||
| 241.8 | 221.8 | 10.0t | 57.2㎏/m | ||
| 241.8 | 217.8 | 12.0t | 68.0㎏/m | ||
| 241.8 | 211.8 | 15.0t | 83.9㎏/m | ||
| 241.8 | 201.8 | 20.0t | 109.4㎏/m | ||
| 241.8 | 191.8 | 25.0t | 133.7㎏/m | ||
| 241.8 | 181.8 | 30.0t | 156.7㎏/m | ||
| 241.8 | 171.8 | 35.0t | 178.5㎏/m | ||
| 241.8 | 165.8 | 38.0t | 191.0㎏/m | ||
| 241.8 | 161.8 | 40.0t | 199.1㎏/m | ||
| 244.5 | 228.5 | 8.0t | 46.7㎏/m | ||
| 244.5 | 224.5 | 10.0t | 57.8㎏/m | ||
| 244.5 | 220.5 | 12.0t | 68.8㎏/m | ||
| 244.5 | 214.5 | 15.0t | 84.9㎏/m | ||
| 244.5 | 204.5 | 20.0t | 110.7㎏/m | ||
| 244.5 | 194.5 | 25.0t | 135.3㎏/m | ||
| 244.5 | 184.5 | 30.0t | 158.7㎏/m | ||
| 254.0 | 238.0 | 8.0t | 48.5㎏/m | ||
| 254.0 | 234.0 | 10.0t | 60.2㎏/m | ||
| 254.0 | 224.0 | 15.0t | 88.4㎏/m | ||
| 254.0 | 214.0 | 20.0t | 115.4㎏/m | ||
| 254.0 | 204.0 | 25.0t | 141.2㎏/m | ||
| 260.0 | 230.0 | 15.0t | 90.6㎏/m | ||
| 250A | 267.4 | 260.6 | 3.4t | 22.1㎏/m | |
| 250A | 267.4 | 259.4 | 4.0t | 26.0㎏/m | |
| 250A | SCH20 | 267.4 | 254.6 | 6.4t | 41.2㎏/m |
| 250A | SGP | 267.4 | 254.2 | 6.6t | 42.4㎏/m |
| 250A | SCH30 | 267.4 | 251.8 | 7.8t | 49.9㎏/m |
| 250A | SCH95 | 267.4 | 248.8 | 9.3t | 59.2㎏/m |
| 250A | O190/2 | 267.4 | 237.2 | 15.1t | 94.0㎏/m |
| 250A | 267.4 | 232.6 | 17.4t | 107.3㎏/m | |
| 250A | 267.4 | 231.0 | 18.2t | 111.9㎏/m | |
| 250A | 267.4 | 227.4 | 20.0t | 122.0㎏/m | |
| 250A | SCH120 | 267.4 | 224.6 | 21.4t | 129.8㎏/m |
| 250A | 267.4 | 217.4 | 25.0t | 149.4㎏/m | |
| 250A | 267.4 | 210.4 | 28.5t | 167.9㎏/m | |
| 250A | SCH160 | 267.4 | 210.2 | 28.6t | 168.4㎏/m |
| 250A | 267.4 | 207.4 | 30.0t | 175.6㎏/m | |
| 250A | 267.4 | 191.4 | 38.0t | 215.0㎏/m | |
| 250A | 267.4 | 187.4 | 40.0t | 224.3㎏/m | |
| 273.1 | 253.1 | 10.0t | 60.5㎏/m | ||
| 273.1 | 249.1 | 12.0t | 77.3㎏/m | ||
| 273.1 | 243.1 | 15.0t | 95.5㎏/m | ||
| 273.1 | 233.1 | 20.0t | 124.8㎏/m | ||
| 273.1 | 223.1 | 25.0t | 153.0㎏/m | ||
| 273.1 | 213.1 | 30.0t | 179.9㎏/m | ||
| 280.0 | 261.4 | 9.3t | 62.1㎏/m | ||
| 280.0 | 260.0 | 10.0t | 66.6㎏/m | ||
| 280.0 | 256.0 | 12.0t | 79.3㎏/m | ||
| 280.0 | 250.0 | 15.0t | 98.0㎏/m | ||
| 280.0 | 240.0 | 20.0t | 128.2㎏/m | ||
| 280.0 | 236.0 | 22.0t | 140.0㎏/m | ||
| 280.0 | 230.0 | 25.0t | 157.2㎏/m | ||
| 280.0 | 224.0 | 28.0t | 174.0㎏/m | ||
| 298.0 | 282.0 | 8.0t | 57.2㎏/m | ||
| 298.0 | 278.0 | 10.0t | 71.0㎏/m | ||
| 298.0 | 274.0 | 12.0t | 84.6㎏/m | ||
| 298.0 | 268.0 | 15.0t | 104.7㎏/m | ||
| 298.0 | 258.0 | 20.0t | 137.1㎏/m | ||
| 298.0 | 248.0 | 25.0t | 168.3㎏/m | ||
| 298.0 | 238.0 | 30.0t | 198.3㎏/m | ||
| 298.0 | 230.0 | 34.0t | 221.4㎏/m | ||
| 298.0 | 218.0 | 40.0t | 254.5㎏/m | ||
| 305.0 | 255.0 | 25.0t | 172.6㎏/m | ||
| 300A | 318.5 | 305.7 | 6.4t | 49.3㎏/m | |
| 300A | 318.5 | 304.7 | 6.9t | 53.0㎏/m | |
| 300A | 318.5 | 301.7 | 8.4t | 64.2㎏/m | |
| 300A | 318.5 | 299.5 | 9.5t | 72.4㎏/m | |
| 300A | SCH 40 | 318.5 | 297.9 | 10.3t | 78.3㎏/m |
| 300A | 318.5 | 293.1 | 12.7t | 95.8㎏/m | |
| 300A | 318.5 | 288.5 | 15.0t | 112.3㎏/m | |
| 300A | SCH 80 | 318.5 | 283.7 | 17.4t | 129.2㎏/m |
| 300A | 318.5 | 3.0 | 20.0t | 625.4㎏/m | |
| 300A | 318.5 | 275.7 | 21.4t | 156.8㎏/m | |
| 300A | 318.5 | 268.5 | 25.0t | 181.0㎏/m | |
| 300A | SCH120 | 318.5 | 267.7 | 25.4t | 183.6㎏/m |
| 300A | 318.5 | 261.3 | 28.6t | 204.5㎏/m | |
| 300A | SCH160 | 318.5 | 251.9 | 33.3t | 234.2㎏/m |
| 300A | 318.5 | 238.5 | 40.0t | 274.7㎏/m | |
| 323.9 | 303.9 | 10.0t | 77.4㎏/m | ||
| 323.9 | 289.1 | 17.4t | 131.5㎏/m | ||
| 339.7 | 319.7 | 10.0t | 81.3㎏/m | ||
| 339.7 | 309.7 | 15.0t | 120.1㎏/m | ||
| 339.7 | 299.7 | 20.0t | 157.7㎏/m | ||
| 351.0 | 301.0 | 25.0t | 201.0㎏/m | ||
| 351.0 | 279.0 | 36.0t | 279.7㎏/m | ||
| 350A | SCH20 | 355.6 | 339.8 | 7.9t | 67.7㎏/m |
| 350A | SCH30 | 355.6 | 336.6 | 9.5t | 81.1㎏/m |
| 350A | SCH40 | 355.6 | 333.4 | 11.1t | 94.3㎏/m |
| 350A | SCH60 | 355.6 | 325.4 | 15.1t | 126.8㎏/m |
| 350A | SCH80 | 355.6 | 317.6 | 19.0t | 157.7㎏/m |
| 350A | 355.6 | 315.6 | 20.0t | 165.5㎏/m | |
| 350A | SCH100 | 355.6 | 308.0 | 23.8t | 194.7㎏/m |
| 350A | 355.6 | 305.6 | 25.0t | 203.8㎏/m | |
| 350A | SCH120 | 355.6 | 300.0 | 27.8t | 224.7㎏/m |
| 350A | 355.6 | 295.6 | 30.0t | 240.9㎏/m | |
| 350A | SCH140 | 355.6 | 292.0 | 31.8t | 253.9㎏/m |
| 350A | SCH160 | 355.6 | 284.2 | 35.7t | 281.6㎏/m |
| 350A | SCH10 | 355.6 | 342.8 | 6.4t | 55.1㎏/m |
| 381.0 | 361.0 | 10.0t | 91.5㎏/m | ||
| 381.0 | 357.0 | 12.0t | 109.2㎏/m | ||
| 381.0 | 351.0 | 15.0t | 135.4㎏/m | ||
| 381.0 | 341.0 | 20.0t | 178.1㎏/m | ||
| 381.0 | 331.0 | 25.0t | 219.5㎏/m | ||
| 381.0 | 321.0 | 30.0t | 259.7㎏/m | ||
| 400A | SCH10 | 406.4 | 393.6 | 6.4t | 63.1㎏/m |
| 400A | SCH20 | 406.4 | 390.6 | 7.9t | 77.6㎏/m |
| 400A | SCH30 | 406.4 | 387.4 | 9.5t | 93.0㎏/m |
| 400A | SCH40 | 406.4 | 381.0 | 12.7t | 123.3㎏/m |
| 400A | SCH60 | 406.4 | 373.0 | 16.7t | 160.5㎏/m |
| 400A | SCH80 | 406.4 | 363.6 | 21.4t | 203.2㎏/m |
| 400A | SCH100 | 406.4 | 354.0 | 26.2t | 245.7㎏/m |
| 400A | SCH120 | 406.4 | 344.6 | 30.9t | 286.1㎏/m |
| 400A | SCH140 | 406.4 | 333.4 | 36.5t | 333.0㎏/m |
| 400A | SCH160 | 406.4 | 325.4 | 40.5t | 365.5㎏/m |
| 457.2 | 444.4 | 6.4t | 71.2㎏/m | ||
| 457.2 | 441.4 | 7.9t | 87.5㎏/m | ||
| 457.2 | 435.0 | 11.1t | 122.1㎏/m | ||
| 457.2 | 428.6 | 14.3t | 156.2㎏/m | ||
| 457.2 | 419.2 | 19.0t | 205.3㎏/m | ||
| 457.2 | 409.6 | 23.8t | 254.4㎏/m | ||
| 457.2 | 398.4 | 29.4t | 310.2㎏/m | ||
| 457.2 | 387.4 | 34.9t | 363.5㎏/m | ||
| 457.2 | 377.8 | 39.7t | 408.8㎏/m | ||
| 457.2 | 366.8 | 45.2t | 459.3㎏/m | ||
| 500.0 | 482.0 | 9.0t | 109.0㎏/m | ||
| 500.0 | 476.0 | 12.0t | 144.4㎏/m | ||
| 500.0 | 472.0 | 14.0t | 167.8㎏/m | ||
| 508.0 | 476.0 | 16.0t | 194.1㎏/m | ||
| 508.0 | 470.0 | 19.0t | 229.1㎏/m | ||
| 508.0 | 464.0 | 22.0t | 263.7㎏/m |
737 件中 1 から 737 まで表示
一般用VP管 （JIS K 6741）
| 呼び径 | 外径 | 厚さ | 近似内径 | 長さ |
|---|---|---|---|---|
| VP 13 | 18 | 2.2 | 13 | 4000 |
| VP 16 | 22 | 2.7 | 16 | 4000 |
| VP 20 | 26 | 2.7 | 20 | 4000 |
| VP 25 | 32 | 3.1 | 25 | 4000 |
| VP 30 | 38 | 3.1 | 31 | 4000 |
| VP 40 | 48 | 3.6 | 40 | 4000 |
| VP 50 | 60 | 4.1 | 51 | 4000 |
| VP 65 | 76 | 4.1 | 67 | 4000 |
| VP 75 | 89 | 5.5 | 77 | 4000 |
| VP 100 | 114 | 6.6 | 100 | 4000 |
| VP 125 | 140 | 7 | 125 | 4000 |
| VP 150 | 165 | 8.9 | 146 | 4000 |
| VP 200 | 216 | 10.3 | 194 | 4000 |
| VP 250 | 267 | 12.7 | 240 | 4000 |
| VP 300 | 318 | 15.1 | 286 | 4000 |
一般用VU管 （薄肉管 JIS K 6741）
| 呼び径 | 外径 | 厚さ | 近似内径 | 長さ |
|---|---|---|---|---|
| VU 40 | 48 | 1.8 | 44 | 4000 |
| VU 50 | 60 | 1.8 | 56 | 4000 |
| VU 65 | 76 | 2.2 | 71 | 4000 |
| VU 75 | 89 | 2.7 | 83 | 4000 |
| VU 100 | 114 | 3.1 | 107 | 4000 |
| VU 125 | 140 | 4.1 | 131 | 4000 |
| VU 150 | 165 | 5.1 | 154 | 4000 |
| VU 200 | 216 | 6.5 | 202 | 4000 |
| VU 250 | 267 | 7.8 | 250 | 4000 |
| VU 300 | 318 | 9.2 | 298 | 4000 |
| VU 350 | 370 | 10.5 | 348 | 4000 |
| VU 400 | 420 | 11.8 | 395 | 4000 |
| VU 450 | 470 | 13.2 | 442 | 4000 |
| VU 500 | 520 | 14.6 | 489 | 4000 |
| VU 600 | 630 | 17.8 | 592 | 4000 |
| 寸法(mm) | kg/m | |
|---|---|---|
| t | A×B | |
| 3 | 20×20 | 0.885 |
| 3 | 25×25 | 1.12 |
| 3 | 30×30 | 1.36 |
| 5 | 2.16 | |
| 3 | 40×40 | 1.83 |
| 5 | 2.95 | |
| 4 | 50×50 | 3.06 |
| 6 | 4.43 | |
| 8 | 5.78 | |
| 6 | 65×65 | 5.91 |
| 8 | 7.66 | |
| 6 | 75×75 | 6.85 |
| 9 | 9.96 | |
| 12 | 13 | |
| 7 | 90×90 | 9.59 |
| 10 | 13.3 | |
| 13 | 17 | |
| 7 | 100×100 | 10.7 |
| 10 | 14.9 | |
| 13 | 19.1 | |
| FB(平鋼) 定尺5.5m | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|
| 厚み(t) | ||||||||||
| 3 | 4.5 | 6 | 9 | 12 | 16 | 19 | 22 | 25 | ||
| 幅(W) | 13 | ◯ | ◯ | |||||||
| 16 | ◯ | ◯ | ◯ | ◯ | ||||||
| 19 | ◯ | ◯ | ◯ | ◯ | ||||||
| 22 | ◯ | ◯ | ◯ | ◯ | ||||||
| 25 | ◯ | ◯ | ◯ | ◯ | ◯ | ◯ | ||||
| 32 | ◯ | ◯ | ◯ | ◯ | ◯ | ◯ | ◯ | |||
| 38 | ◯ | ◯ | ◯ | ◯ | ◯ | ◯ | ◯ | |||
| 44 | ◯ | ◯ | ◯ | ◯ | ◯ | ◯ | ◯ | |||
| 50 | ◯ | ◯ | ◯ | ◯ | ◯ | ◯ | ◯ | ◯ | ◯ | |
| 65 | ◯ | ◯ | ◯ | ◯ | ◯ | ◯ | ◯ | ◯ | ◯ | |
| 75 | ◯ | ◯ | ◯ | ◯ | ◯ | ◯ | ◯ | ◯ | ◯ | |
| 90 | ◯ | ◯ | ◯ | ◯ | ◯ | ◯ | ◯ | ◯ | ||
| 100 | ◯ | ◯ | ◯ | ◯ | ◯ | ◯ | ◯ | ◯ | ||
| 125 | ◯ | ◯ | ◯ | ◯ | ◯ | ◯ | ◯ | |||
| 150 | ◯ | ◯ | ◯ | ◯ | ◯ | ◯ | ◯ | |||

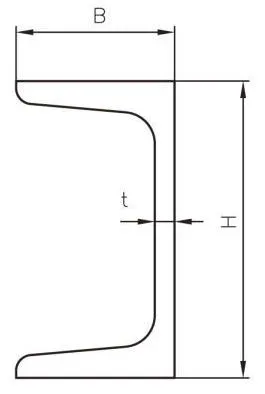

| チャンネル(mm) | kg/m | |
|---|---|---|
| t | A×B | |
| 5 | 40×75 | 6.92 |
| 5 | 50×100 | 9.36 |
| 6 | 65×125 | 13.4 |
| 6.5 | 75×150 | 18.6 |
| 9 | 24 | |
| 7 | 75×180 | 21.4 |
| 7.5 | 80×200 | 24.6 |
| 8 | 90×200 | 30.3 |
| 8.5 | 90×230 | 33.1 |
| 9 | 90×250 | 34.6 |
| 11 | 40.2 | |
| 9 | 90×300 | 38.1 |
| 10 | 43.8 | |
| 12 | 48.6 | |
| 10.5 | 100×380 | 54.5 |
| 13 | 67.3 | |

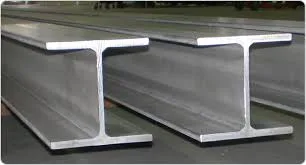

| H鋼 寸法 (mm) | kg/m | ||
|---|---|---|---|
| A×B | t1 | t2 | |
| 100×100 | 6 | 8 | 16.9 |
| 125×125 | 6.5 | 9 | 23.6 |
| 150×150 | 7 | 10 | 31.1 |
| 175×175 | 7.5 | 11 | 40.4 |
| 200×200 | 8 | 12 | 49.9 |
| 250×250 | 9 | 14 | 71.8 |
| 300×300 | 10 | 15 | 93 |
| 350×350 | 12 | 19 | 135 |
| 400×400 | 13 | 21 | 172 |
| ss400(一般構造用圧延鋼材) |
|---|
| 1.6mm 2.3mm 3.2mm 4.5mm 6mm 9mm 12mm 14mm |
| 16mm 19mm 22mm 25mm 28mm 30mm 32mm 36mm 38mm |
2 件中 1 から 2 まで表示
40〜100mm(5mm単位で厚くなります)
100〜200mm(10mm単位で厚くなります)
3× 6尺= 914×1,829ミリ
4× 8尺=1,219×2,438ミリ
5×10尺=1,524×3,048ミリ
| 仕様 | |
|---|---|
| 規格 | JIS B 1181 付属書 |
| 材質 | 鋼 合金鋼 ステンレス鋼 真鍮 |
2 件中 1 から 2 まで表示
| ｄ | P(ピッチ) | m(許容差) | e | 対辺 | |
|---|---|---|---|---|---|
| (ねじの呼び) | 並目 | 細目 | 基準寸法 | 約 | 基準寸法 |
| M 2 | 1.6 | 4.6 | 4 | ||
| M2.3 | 1.8 | 5.2 | 4.5 | ||
| M2.5 | 2 | 5.8 | 5 | ||
| M2.6 | |||||
| M 3 | 0.50 | 2.4 | 6.4 | 5.5 | |
| M 4 | 0.70 | 3.2 | 8.1 | 7 | |
| M 5 | 0.80 | 4 | 9.2 | 8 | |
| M 6 | 1.00 | 5 | 12 | 10 | |
| M 8 | 1.25 | 1.00 | 6.5 | 15 | 13 |
| M 10 | 1.50 | 1.25 | 8 | 20 | 17 |
| M 12 | 1.75 | 1.25 | 10 | 22 | 19 |
| M 14 | 2.00 | 1.50 | 11 | 25 | 22 |
| M 16 | 2.50 | 1350 | 13 | 28 | 24 |
| M 18 | 2.50 | 1.50 | 15 | 31 | 27 |
| M 20 | 2.50 | 1.50 | 16 | 35 | 30 |
| M 22 | 2.50 | 1.50 | 18 | 37 | 32 |
| M 24 | 3.00 | 2.00 | 19 | 42 | 36 |
| M 27 | 3.00 | 2.00 | 22 | 47 | 41 |
| M 30 | 3.50 | 2.00 | 24 | 53 | 46 |
| M 33 | 3.50 | 2.00 | 26 | 58 | 50 |
| M 36 | 4.00 | 3.00 | 29 | 64 | 55 |
| M 39 | 4.00 | 3.00 | 31 | 69 | 60 |
| M 42 | 4.50 | 34 | 75 | 65 | |
| M 45 | 4.50 | 36 | 891 | 70 |
|
| M 48 | 5.00 | 38 | 87 | 75 | |
| M 52 | 5.00 | 42 | 92 | 80 | |
| M 56 | 5.50 | 45 | 98 | 85 | |
| M 60 | 5.50 | 48 | 104 | 90 | |
| M 64 | 6.00 | 51 | 110 | 95 | |
| M 68 | 24 | 115 | 100 | ||
